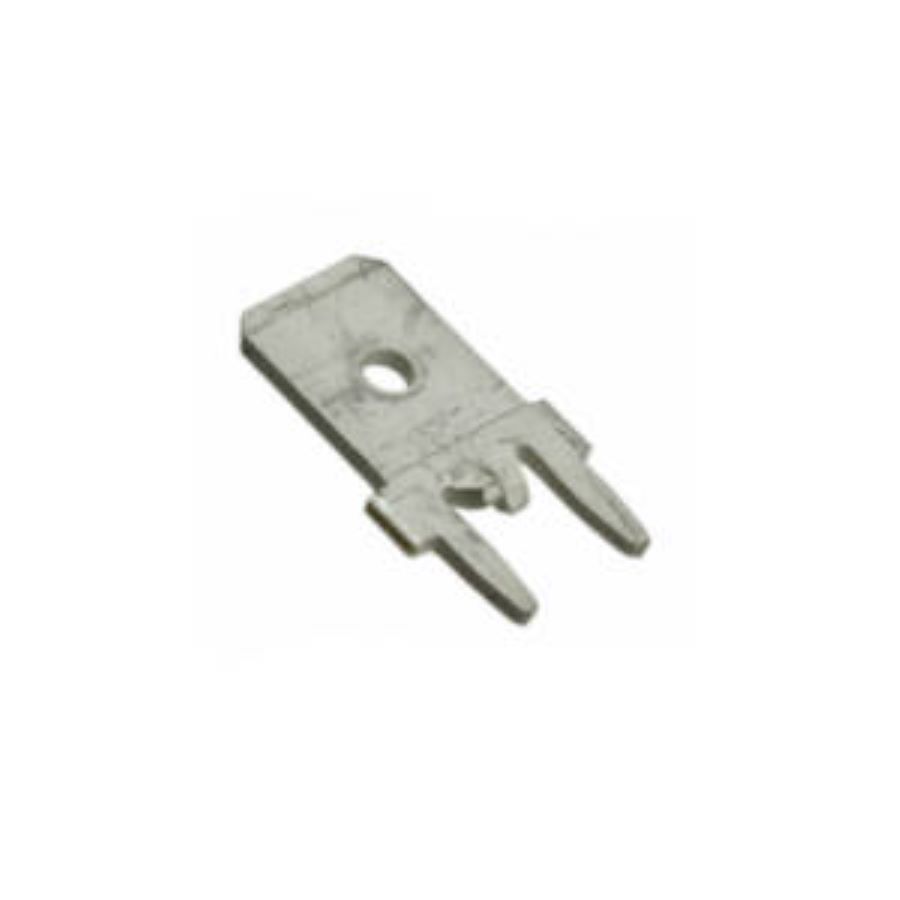

63849-1
Manufacturer:
TE Connectivity
Mfr.Part #:
63849-1
Datasheet:
Description:
Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 14.02 mm |
| Material | Brass |
| Packaging | Bag |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Orientation | Straight |
| Lifecycle Status | Active |
| Gender | Male |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | -30.0 °C to 110 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Insulation | Non-Insulated |
| Insulation Material | Non-Insulated |
| elv compliant | Compliant |
| Termination Style | Solder |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 25956
Distributors
pcbx
pcbxUnit Price$0.18458
Ext.Price$0.18458
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18458 | $0.18458 |
| 10 | $0.09229 | $0.92290 |
| 50 | $0.07099 | $3.54950 |
| 100 | $0.05461 | $5.46100 |
| 500 | $0.04968 | $24.84000 |
| 1000 | $0.04520 | $45.20000 |
| 3000 | $0.04196 | $125.88000 |
| 5000 | $0.03895 | $194.75000 |
| 10000 | $0.03616 | $361.60000 |
| 30000 | $0.03489 | $1046.70000 |
| 50000 | $0.03366 | $1683.00000 |
| 100000 | $0.03218 | $3218.00000 |
